Product Details

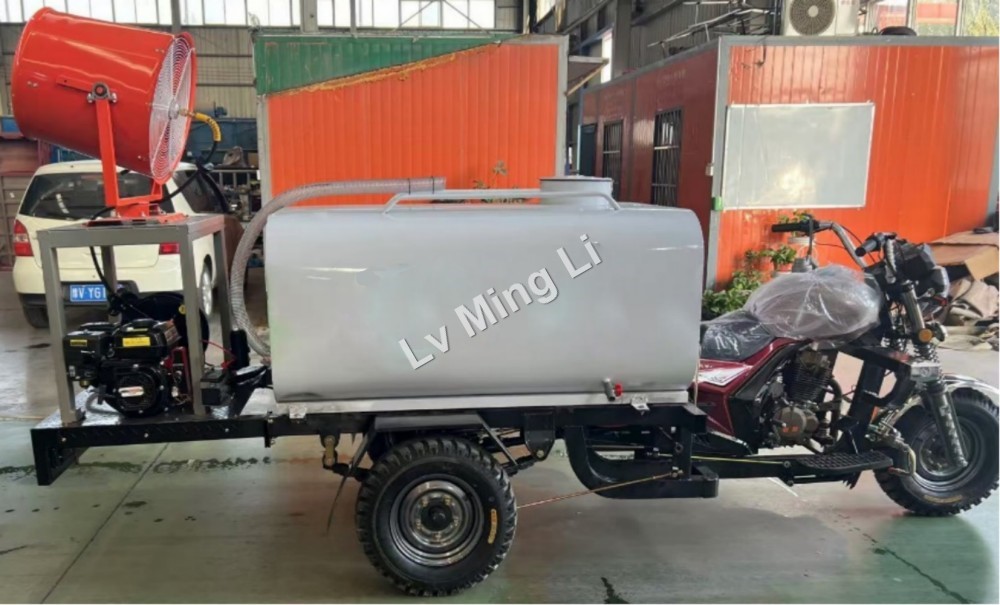

The vehicle is suitable for operation in multiple scenarios including urban streets, residential compounds, municipal roads, campuses and commercial areas. Its compact and agile body takes up little space and travels freely through narrow lanes and alleys. Equipped with a dedicated high-pressure water spraying system, it supports multiple working modes such as front flushing, rear watering, side spraying and fog cannon dust suppression. It delivers even water coverage and outstanding dust reduction and suppression performance.
Vehicle position | Serial number | name | specification | Optional configuration |
Tricycle section | 1 | engine | 150 wear-resistant air-cooled engine | 175/200/250/300/ Air-cooled/water-cooled |
2 | Front shock absorber | 43 outer spring stiffener hydraulic interchangeable shock absorber | 43 Tyrannosaurus /50 Tyrannosaurus /50 Tyrannosaurus swap | |
3 | Spring plate | 750 long 16 kg auto leaf spring | Weight increase | |
4 | frame | Front 4X8 rear 5X7 in one big frame added F1 bend | The pipe can be enlarged. | |
5 | Rear axle | Changan afterforce rear axle mechanical brake | Car full float, oil brake, Gari King, | |
6 | Tyre specification | 500 before 500 after 500 | Front wheel 110-90 rear 500/ rear 450 | |
7 | Vehicle specification | 1.2 X3.6 | The dimensions are customized according to the water tank | |
8 | colour | Red/blue/Engineering yellow/green, etc | Plastic cans, tin cans. | |
Environmental protection function | 1 | Tank material | Stainless steel | Size can be customized |
2 | Tank size | 69 high, 94 wide, 150 long. | 160 gasoline electric/manual start, 190 gasoline electric/start | |
3 | Pass type number | 190 gasoline electric start | Tube length can be customized | |
4 | Pipe coiler | 10 m high pressure pipe coil, | selectable | |
5 | Fog cannon | 30 No power ventilator | selectable | |
6 | Spray washer | Extended high pressure water nozzle with nozzle | 150-200-300KG pressure pump | |
7 | High pressure pump | Pure copper ceramic cylinder high pressure pump 300 | 175/200/250/300/ Air-cooled/water-cooled | |
8 | filter | High density filter element thickening material | ||
9 | Waterway switching | Stainless steel high pressure ball valve | ||
10 | Rear sprinkler | selectable | ||
11 | Fire column | selectable | ||
12 | Surface washing | Blow front facing | selectable | |
Usage scenarios and objects | Constructionsite/municipal/school/park/hospital/office/residential/farm/farm/parking lot and other areas of the road, streets, stations, alleys, sidewalks, ground elimination, dust removal and cooling, pesticide spraying. | |||
