Product Details

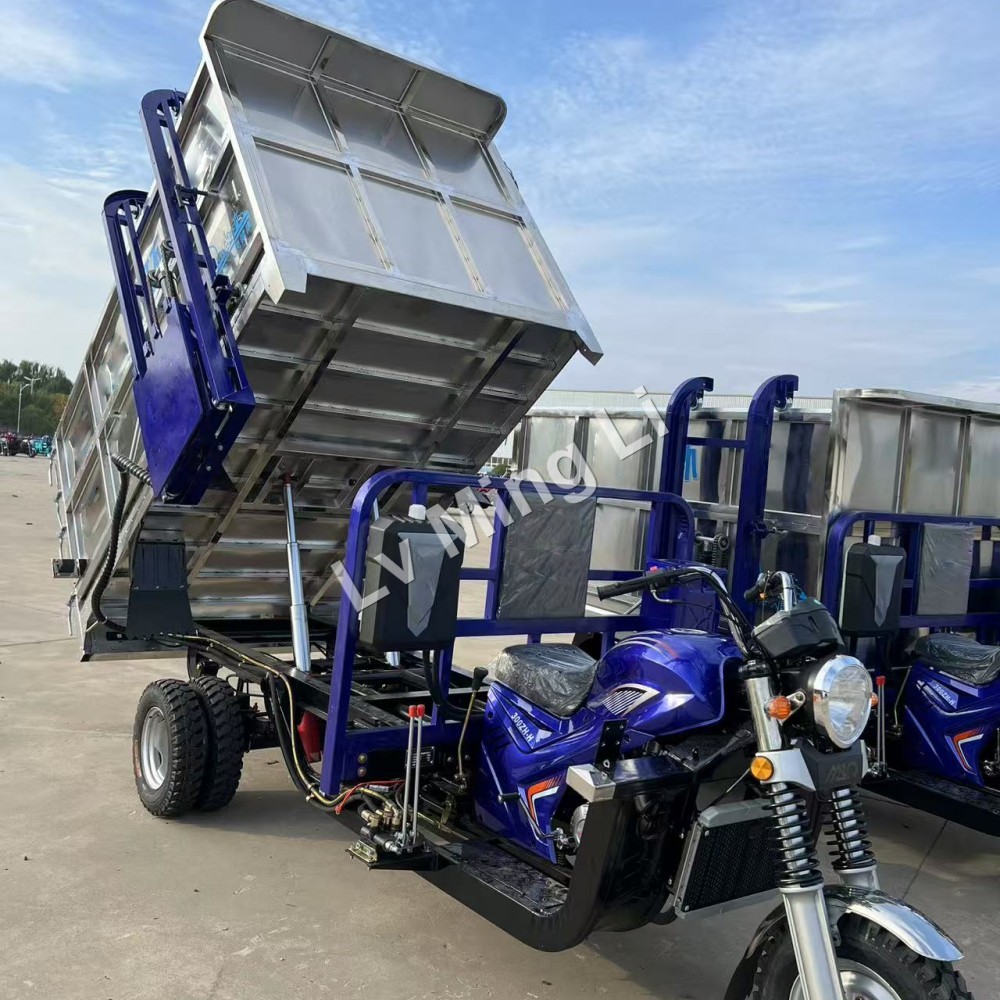

TRI is a professional electric sanitation vehicle tailor-made for urban sanitation and garbage collection scenarios. Its design philosophy can be summed up in four core principles: practicality, durability and safety.
It fully concentrates its product strengths on four core capabilities that sanitation workers value most: large loading capacity for ample storage, high torque for powerful hauling, all-day endurance for long-hour operation, and humanized design for worry-free use.
Main configuration parameter list | |||||
Serial number | item | Specification parameter | Serial number | item | Specification parameter |
1 | Overall dimensions of the vehicle (length × width × height mm) | 4250 * 1800 * 2100 | 15 | Body weight | 675KG |
2 | Carriage size (m) | 1.50*2.60*1.20 height (including front gantry) | 16 | Ground clearance mm | 330 |
3 | Carriage type | Stainless steel sanitation car | 17 | Wheelbase mm | 2320 |
4 | Subtract from front | 60 Dragon burst reinforced tower spring | 18 | Shaft width mm | 1350 |
5 | tyre | Front Dongyue 5.00-12 vacuum tires, rear 5.00-12 double-row wheels | 19 | colour | Army Green/silver |
6 | Fuel tank | Heavy truck tank | 20 | Maximum load kg | 1500KG |
7 | Rear axle | Gari King square tube oil brake two-wheel rear axle | 21 | Maximum speed km/H | 60km/h |
8 | Brake type | Front: Drum type/Back: drum type | 22 | Gasoline car battery | 12V28Ah |
9 | Brake operating type | Front: hand control/Back: foot control | 23 | Variable speed structure | Tape reverse |
10 | engine | Longxin 300 Xuanjian water cooling, water cooling | 24 | Spare tire | Bring a 500-12 spare tire |
11 | Maximum power KW/rpm | 14/7000 | 25 | Hydraulic system | Double top steel (electroplated) |
12 | Volume ml | 325 | 26 | Loading rack | Single bucket loading rack |
13 | Maximum torque N.m/rpm | 25/5500 | 27 | frame | I beam frame |
14 | Type of leaf spring | Seven pieces 20 kg thick | |||
