Product Details

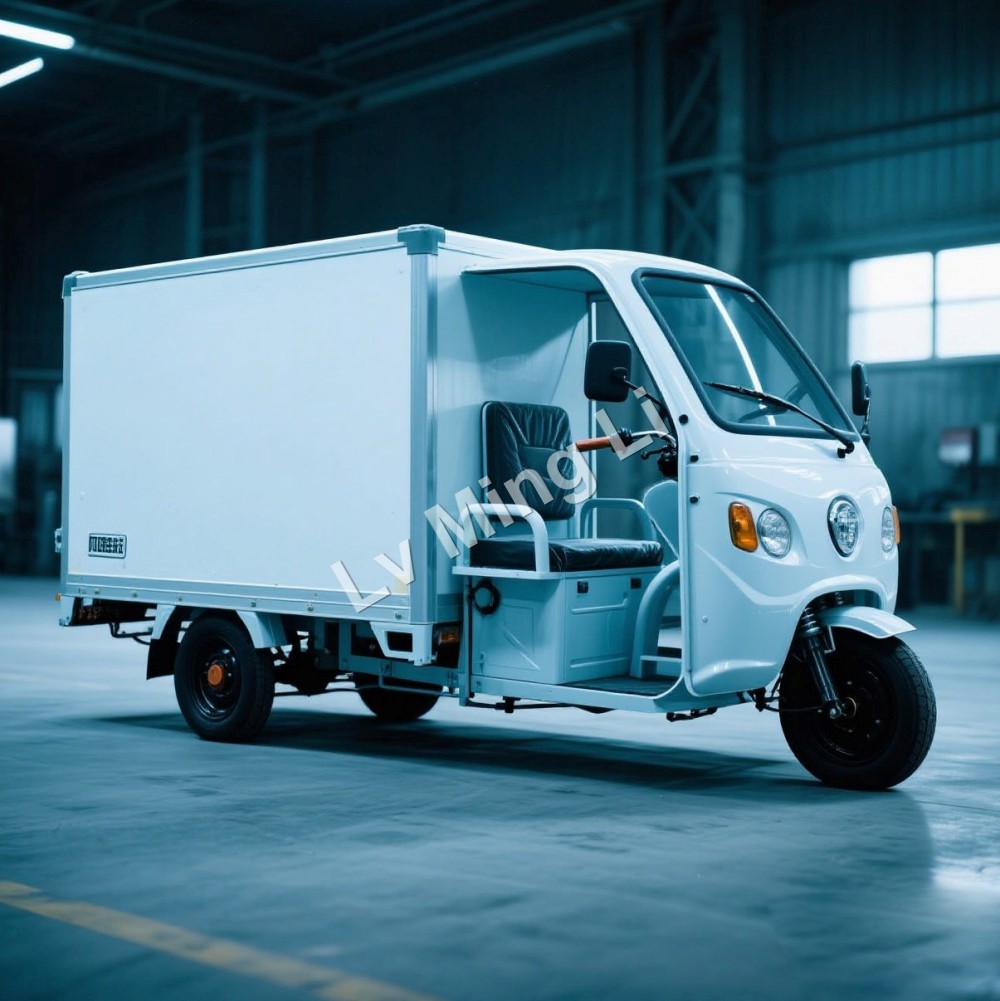

It is not merely an ordinary cargo tricycle with an added cargo box, but a professional electric refrigerated transport vehicle tailor-made for the end-to-end cold chain delivery of fresh agricultural products, frozen food and pharmaceutical supplies.
Main configuration parameter list | |||||
Serial number | item | Specification parameter | Serial number | item | Specification parameter |
1 | Overall dimensions of the vehicle (length × width × height mm) | 3150/1100/1850 | 17 | Wheelbase mm | 2200 |
2 | Carriage size (m) | 1.00*1.56 (including front gantry) | 18 | Shaft width mm | 900 |
3 | Carriage type | Refrigerated car | 19 | colour | white |
4 | Subtract from front | 43 Shock Absorption | 20 | Maximum load kg | seven hundred |
5 | tyre | Front 4.00-12 vacuum tire, rear 4.00-12 vacuum tire | 21 | Maximum speed km/H | 63km/h |
6 | Fuel tank | Anti-electric fuel tank 12L | 22 | Gasoline car battery | 12V9A |
7 | Rear axle | Five hole long safe suspension 180 pot with extra force | 23 | Variable speed structure | Tape reverse |
8 | Brake type | Front: Drum type/Back: drum type | 24 | Spare tire | Take a 400-12 spare tire |
9 | Brake operating type | Front: hand control/Back: foot control | 25 | Cooling box size mm | 1500 * 1000 * 1000 |
10 | engine | Longxin 200 water cooling, water cooling | 26 | Interior temperature control | Electronic control, digital display |
11 | Maximum power KW/rpm | 11.5/7000 | 27 | Freezer machine group | XH 150-48V |
12 | Volume ml | 225 | 28 | refrigerant | R134A |
13 | Maximum torque N.m/rpm | 17.5/5500 | 29 | Refrigeration metering | 750g |
14 | Type of leaf spring | Seven pieces, 14 kilos | 30 | Power/voltage | 650W/48V |
15 | Body weight | 280KG | 31 | Refrigeration battery | 48V45A |
16 | Ground clearance mm | 270 | 32 | recharger | Charger included |
