Product Details

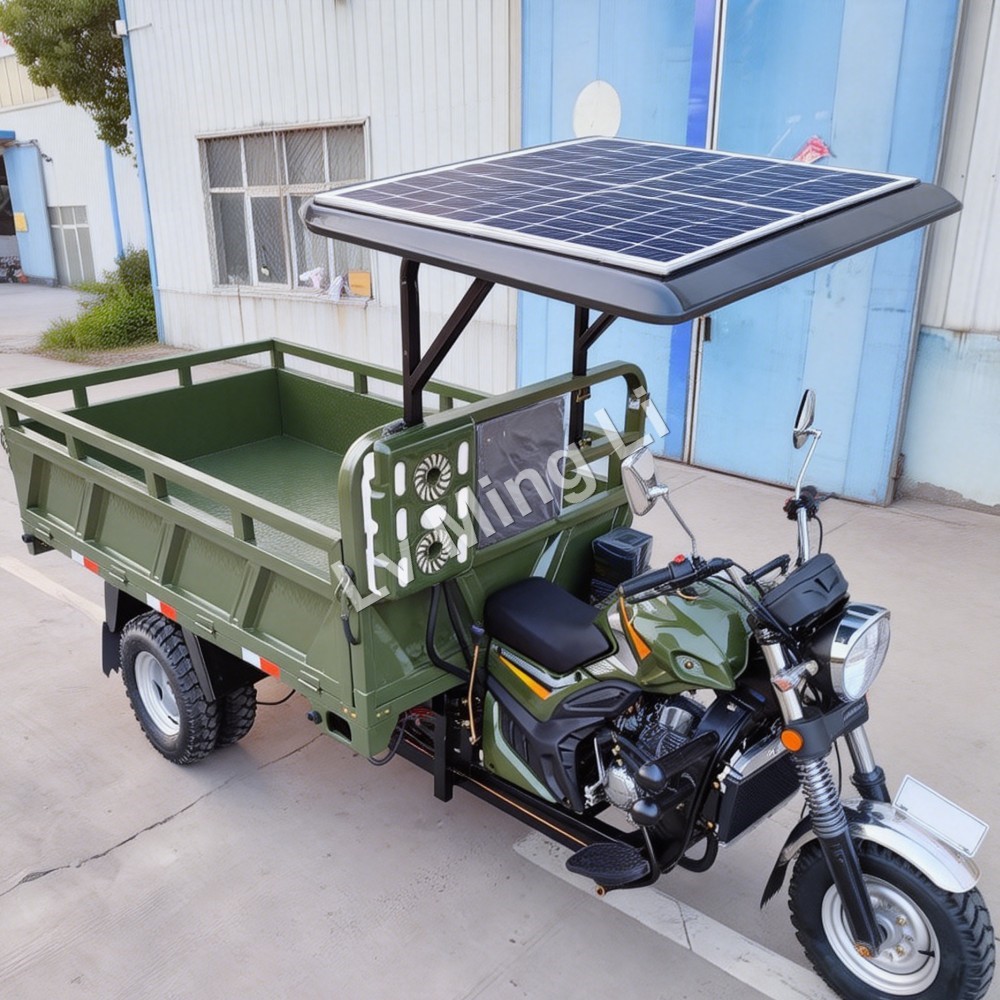

The EVV is designed with the core positioning of heavy load capacity, powerful power output, and solar-assisted range extension. Completely upgraded from previous models, it returns to the essence of freight transportation. It features a larger body, a more robust frame, and a higher-power motor system compared with other models in the product lineup, while also being equipped with solar photovoltaic supplementary energy technology.
Overall size | 3880*1480*1500 |
Engine type | Single cylinder/four stroke/Water cooled |
Container size | 1400 * 2200 |
Frame size | 50 * 100 |
Front shock absorber | 50 diameter dragon storm with skeleton and spring |
Rear shock absorber | 7 cm 5 spring *2 + balance bar |
suspend | External full suspension Chang 'an Bridge rear axle |
Gear ratio | 10.31 |
Braking mode | Front drum, back drum |
tyre | 500-12, three rounds, five holes |
wheelbase | 2350 mm |
Wheel track | 1300 mm |
Top speed | 60 km/h |
Net weight | 550 kg |
Maximum load | 2500 kg |
other | Spare tire, wrench, jack |
Loading quantity | 38 pieces / 40ft container, Discrete Assembly (CKD) |
