Product Details

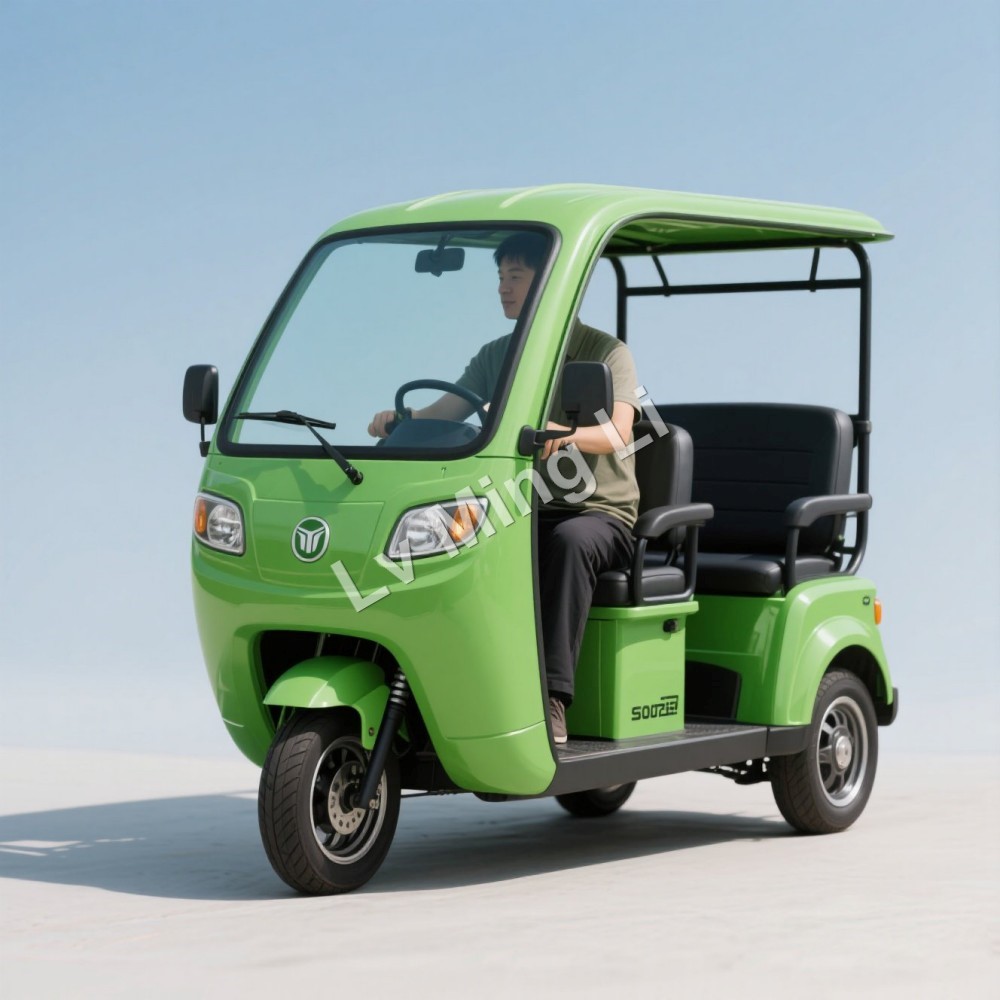

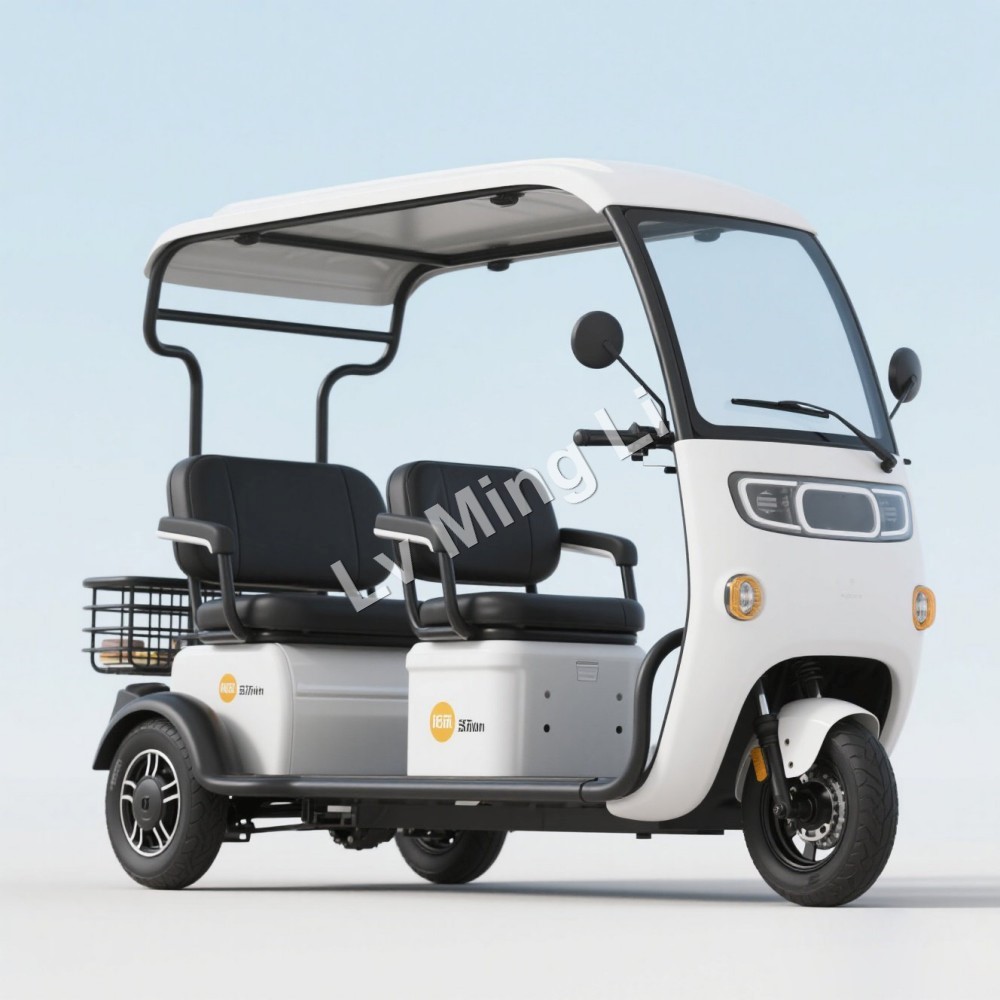

The all-new TRBULL EVM returns to the essence of light mobility — featuring a more compact size, lighter body and fewer seats, while retaining the core strengths of the TRBULL EV series: premium chassis quality, stable handling, and outstanding economy and durability.
Tailored for urban short-distance commuting, convenient travel for middle-aged and elderly users, and flexible transportation for individual business operators, the EVM is a compact electric tricycle. By streamlining some luxury configurations, it achieves a more affordable entry price, lighter and easier handling, and a smaller footprint for parking.
fontParameter size | 2760*1350*1910 | Includes overhead rack height |
Motor type | 60V+70ah/3000W | |
controller | 60V/3000W3 phase 24 pipe | |
Maximum power | 10000W | |
Front shock-absorbing model | 43 hydraulic one-arm outer spring | |
Front and rear wheel models | 400-12 Three rounds interchange | |
Braking condition | Front drum brake. Rear oil brake | Optional front disc brake |
radio | Support USB | |
fan | 12V | |
Iron ceiling | 1850:*1350*150 | |
Front seat | 1150*350 | |
Middle seat | 760*260 | |
Rear seat | 1180*350 | |
Rear and front seat dimensions | Distance *620 chairs | |
Luggage rack | 950*1350 | |
Rear shock absorber | spring |
Spare tire | 400-12 |
Paste surround | Three sides |
Side window glass dimensions | 280+220 |
Rear window glass dimensions | 540*240 |
Pedal leather | Leather |
Design speed | 50/ hour |
Angle of climb | ≤20 degrees 1 km |
range | 80 km |
Net weight | 420KG |
load | 500KG |
wheelbase | 2000MM |
Wheel track | 1160MM |
Ground lift | 330MM |
Rear axle condition | 220 Oil brake half floating |
appearance | machine |
